PERU Hydro Power Plant

Huertas Huanuco in PERU Hydro Power Plant

    • 시공사진
    • 준공사진
    • e-Book

01. Project name

Huertas Hydroelectric Power Plant in Huanuco State, Peru (Private inverstment Project)

02. Summary of Project & Construction

  • 1) Project
  •    - Construction costs: $ 40million, Total funding : $ 56million
  •    - Installed capacity 20MW (Huertas Ⅰ: 10MW, HuertasⅡ: 10MW)
  • 2) Construction
  •    - Number of reservoirs: 2, Waterway for flow velocity power generation: 250m x 2
  •    - Power cable : 25km, Number of substation : 1(boost the voltage to 22.9kV)

03. Current status

  • 1) Working on the basic design for final approval of power plant business rights
  • 2) Minimized environmental damage, secure economic feasibility, reduced construction deration, applied flow velocity power generation method for B/C expansion
  • 3) Construction commencement date: November 2018

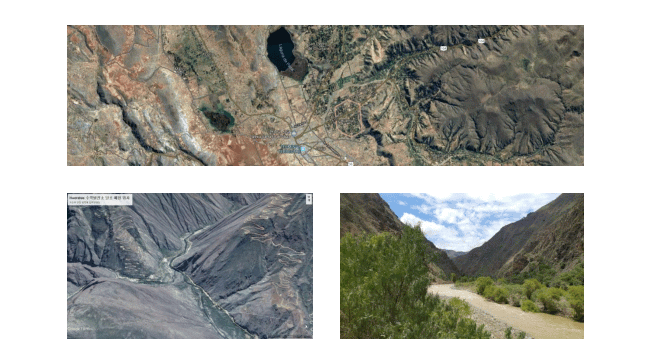

04. Construction stir

- Huertas, Huanuco state, Peru

05. Completed Projects

is building a new hydro power plant of improved quality which will reduce the chance of disrupted ecology which is accomplished by abundant experience in constructing domestic and overseas power plants using hydro power energy.

  • - Power plant: water intake facility (various gate types), repair facility (Penstock Pipe), generator, hydro turbine and auxiliary equipments
  • - Operation control monitoring system
  • - Supply & installation such as switchyard and substation facility
  • - Commissioning service

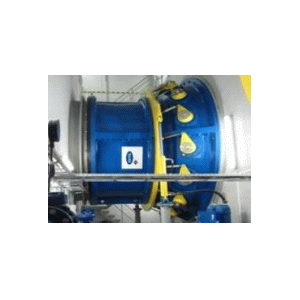

> Small Hydropower generation facility at I-Po Dam

table1 Client : Korea Water Resources Corporation
Contractor : Daelim Co., Ltd. APC Co., Ltd.
1. Capacity : 3,200㎾ class (1,067㎾ x 3 UNIT)
2. Type : Horizontal shaft type, Kaplan hydro turbine, Synchronous generator
3. Conents :
   1) Turbine & Generator
   2) Control System
   3) Auxiliary facility
   4) Commissioning
   * Turbine Generator Maker : MAVEL

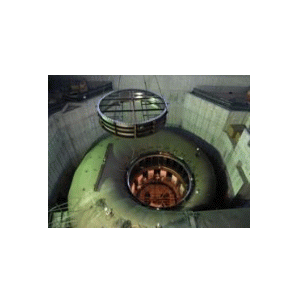

> Cheongpyeong Hydropower #4 new UNIT

table2 Client : Korea Hydro & Nuclear Power Co., Ltd
Contractor : Sambu
1. Capacity : 60MW class Cheongpyeong hydro power plant #4 new mechanical work
2. Type : Vertical shaft Kaplan turbine, inductive generator
3. Conents :
   Hydro turbine and generator, Installation of auxiliary equipment & spiral casing, Supply & Erection of penstock

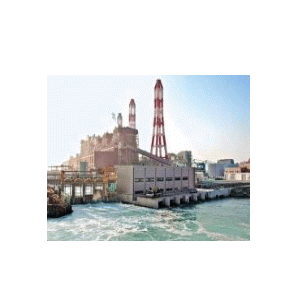

> Hydro Power Plant(900kW x 6 UNIT) construction for Sampo Thermal Power Plant

table3 Client : Korea South East Power Co., Ltd.
Contractor : Halla Energy & Environment
1. Civil construction : 3,200㎾ class (1,067㎾ x 3 UNIT)
   1) Installation of intake gate during dam construction
   2) Construction of reinforced steel structure during cofferdam and preparatory construction
   3) Power transmission line
2. Building : Horizontal shaft type, Kaplan hydro turbine, Synchronous generator
3. Installation of turbine and generator :
   1) Installation of steel structure
   2) Installation of intake gate

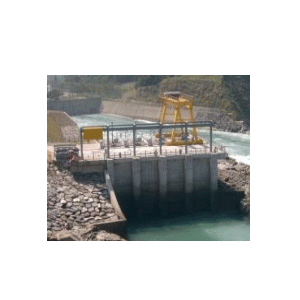

> Small Ocean Hydro Power Plant construction for Taean Thermal Power Plan

table4 Client : Korea Western Power Co., Ltd.
Contractor : Hwachon Plant
1. Structure and earth work
2. Hydro turbine and generator: Installation of 550㎾ x 4 UNIT
3. Entrance valve gate: Installation of 4 SET
4. Transformer. Switchgear
5. Control facility UPS facility
6. Monorail Hoist
7. 22.9㎸ power transmission line
8. Commissioning
